Path.h File Reference

Immutable vector path and related types. More...

#include <algorithm>
#include <cmath>
#include <cstddef>
#include <cstdint>
#include <optional>
#include <span>
#include <utility>
#include <variant>
#include <vector>
#include "tiny_skia/Edge.h"
#include "tiny_skia/Geom.h"
#include "tiny_skia/Transform.h"

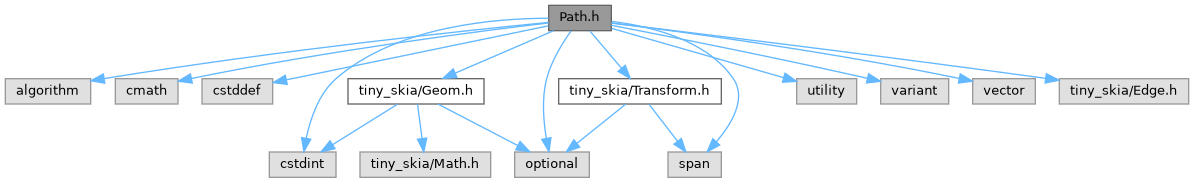

Include dependency graph for Path.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	tiny_skia::Path
	Immutable vector path — a sequence of lines, quadratics, and cubics. More...

Enumerations
enum class	tiny_skia::PathVerb : std::uint8_t
	Path segment verb (moveTo, lineTo, quadTo, cubicTo, close).
enum class	tiny_skia::LineCap : std::uint8_t { Butt , Round , Square }
	Line cap style for stroke endpoints. More...
enum class	tiny_skia::FillRule : std::uint8_t { Winding = 0 , EvenOdd = 1 }
	Fill rule for path filling. More...

Enumeration Type Documentation

LineCap

enum class tiny_skia::LineCap : std::uint8_t

strong

Enumerator
Butt	Flat cap, no extension.
Round	Semicircle cap.
Square	Extends by half the stroke width.

FillRule

enum class tiny_skia::FillRule : std::uint8_t

strong

Enumerator
Winding	Non-zero winding rule.
EvenOdd	Even-odd (parity) rule.
